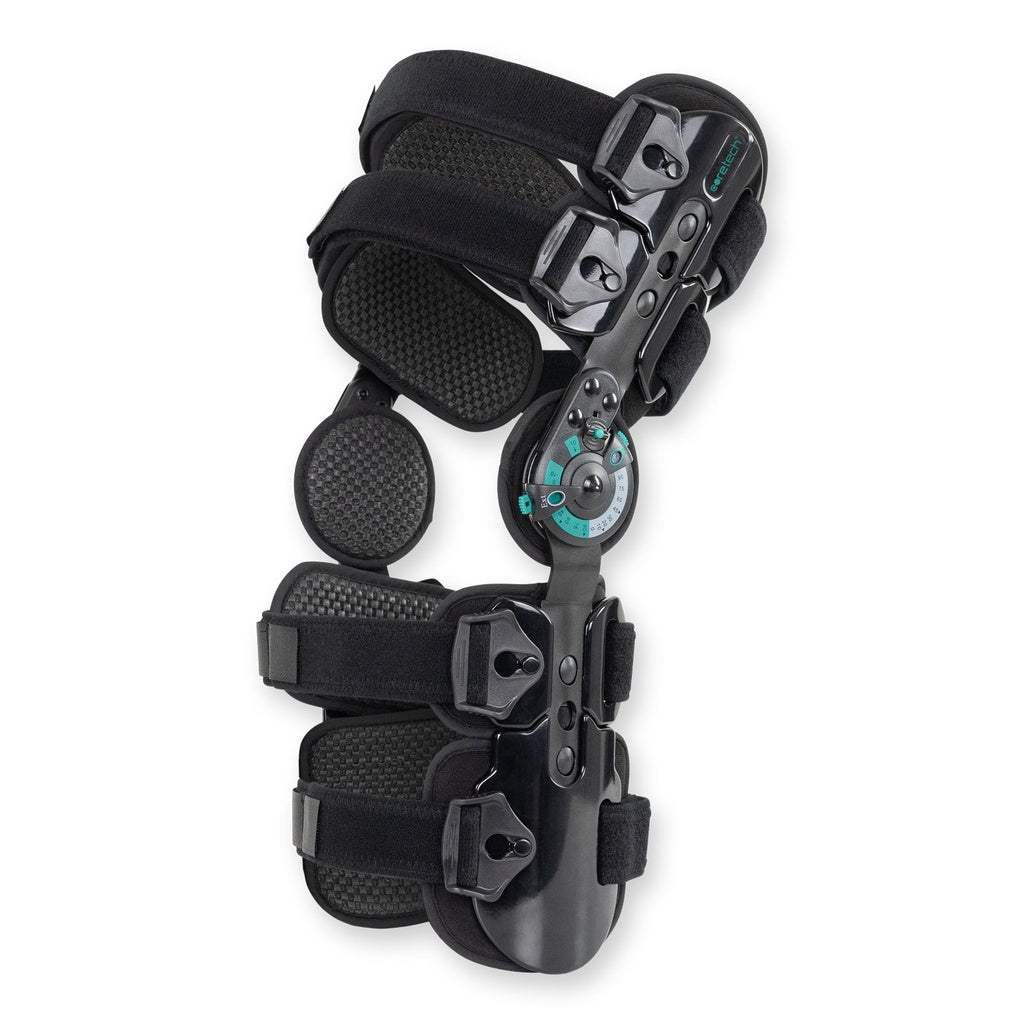

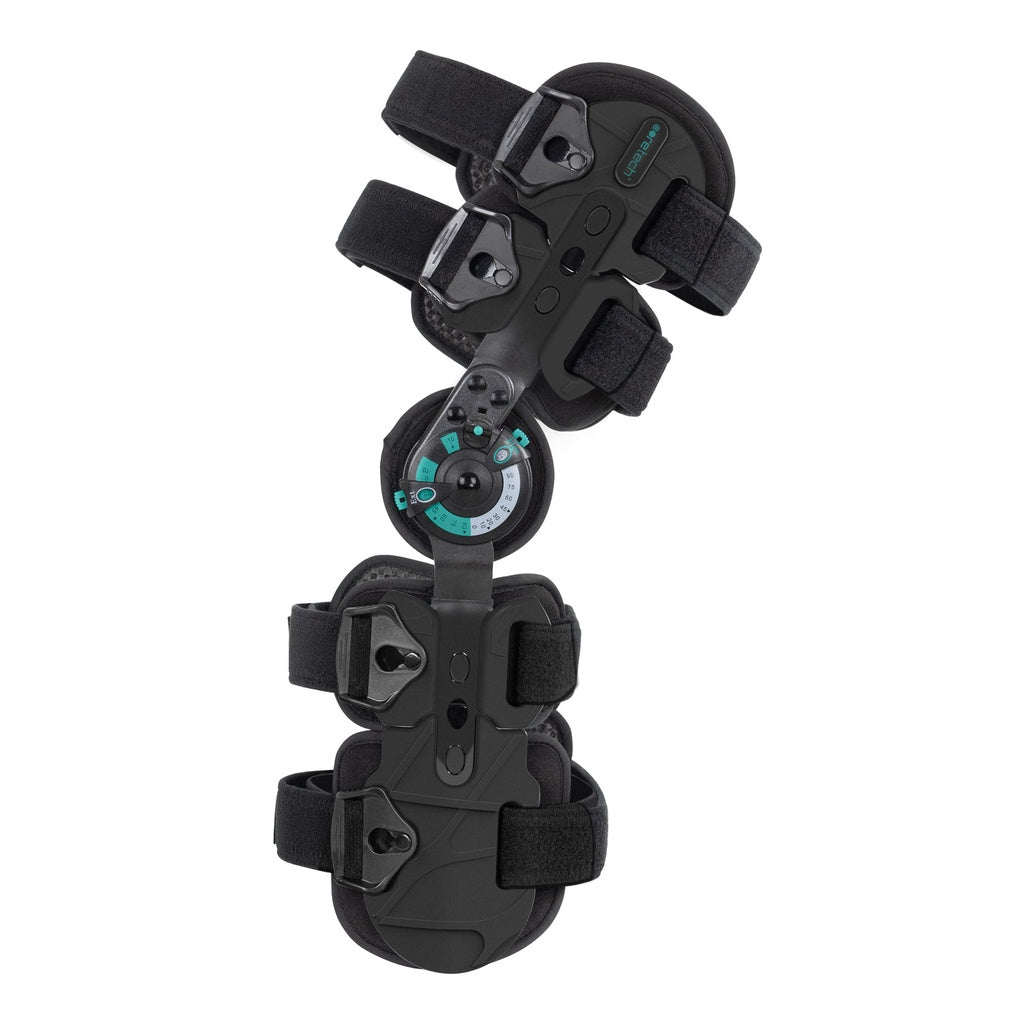

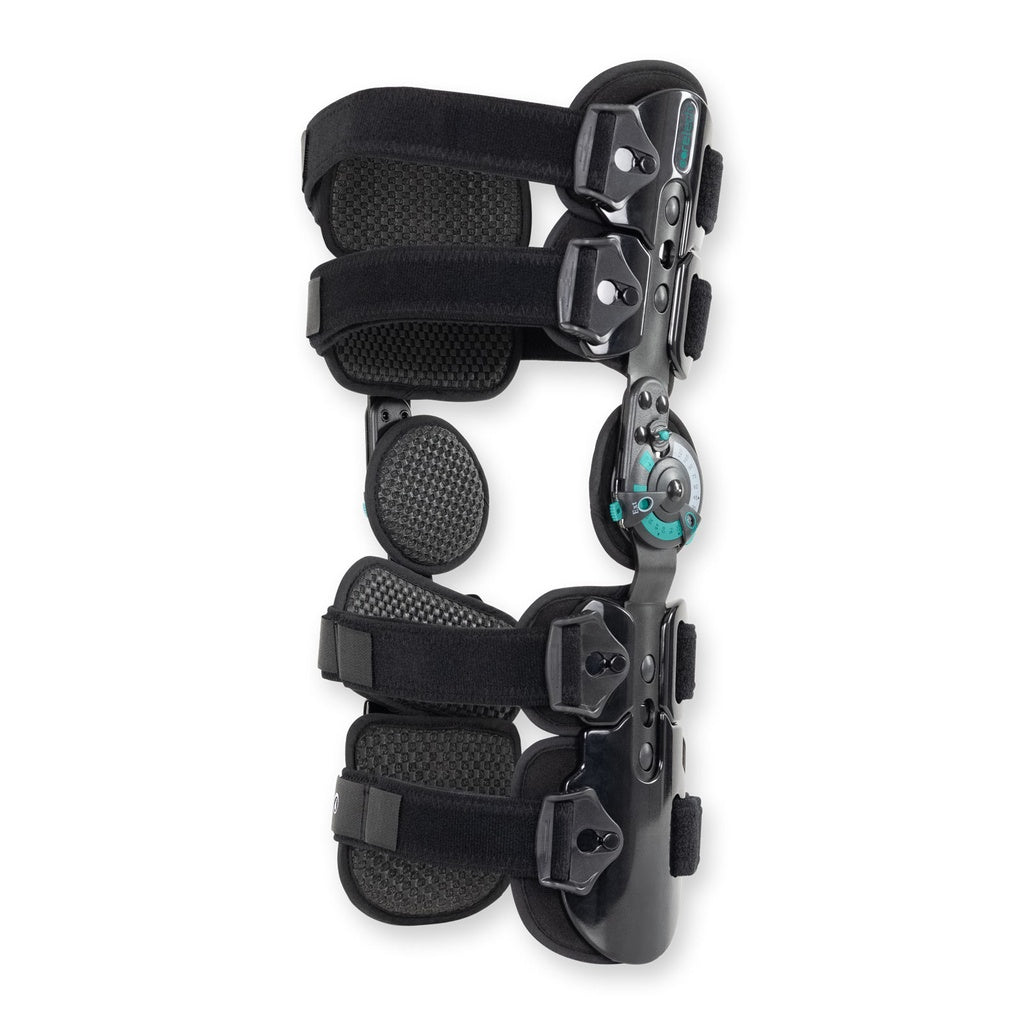

ROM Knee Brace Elite Coretech

Professional Procurement Only: This product is managed exclusively through our Sales Team. Please contact your Sales Representative directly for a quote, or reach through our general channels:

• Phone: (239) 220-5772
• Email: sales@vivehealth.com

The Coretech ROM Knee Brace Elite is a professional-grade rehabilitative device designed for comprehensive knee support and controlled recovery. This versatile brace features precision angle adjustment with flexion settings from 0° to 120° and extension settings from -10° to 90°, making it ideal for post-surgical rehabilitation of ACL, PCL, MCL, and LCL injuries, as well as patella realignment and ligament strains. The universal design accommodates both left and right legs with tool-free length adjustment from 18" to 24", while the quick-release buckle system and numbered straps ensure proper application and secure fit. Premium features include a lightweight aluminum frame, removable non-slip padding, and trimmable straps for maximum comfort and stability during the recovery process.

Features

• Complete Rehabilitative Support
  Fully adjustable range of motion brace designed for post-operative recovery and rehabilitation, ideal for ACL, MCL, PCL, or LCL surgeries, patella realignment, and ligament strains.
• Precision Motion Control
  Bilateral range of motion dials with flexion settings (0° to 120°) and extension settings (-10° to 90°) for progressive recovery protocol.
• Universal Design
  Accommodates both left and right legs with adjustable length from 18" to 23.5" in 1" increments.
• Secure Comfort Fit
  Four numbered straps with quick-release buckles and trimmable lengths for customized compression.
• Premium Construction
  Lightweight aluminum frame with removable, non-slip padding for stability and comfort.

General Specifications

What’s Included:

• 1x ROM Knee Brace Elite Coretech.
• Adjustable straps and padding.
• Owner's Manual (A5 booklet, matte finish).

Uses:

• Provides controlled support for post-operative recovery and rehabilitation. Designed for ACL, MCL, PCL, or LCL surgeries, patella realignment, and ligament injuries. For use under healthcare professional guidance for proper motion settings and usage duration.

Color:

• Black with Pantone 2461C (Coretech teal).

Length Adjustment & Sizing:

• Length Range: 18" to 24" (46 cm to 61 cm).
• Adjustment Increment: 1 inch per click (via side buttons, both sides).
• Coverage Required: Minimum 6" above and 6" below the knee.
• Circumference — Above Knee: Up to 40".
• Circumference — Below Knee: Up to 35".
• Sizing Note: Brace ships pre-set to the smallest size. Must adjust before first use.

Range of Motion:

• Flexion Range: 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°, 105°, 120°.
• Extension Range: -10°, 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°.
• Lock Positions: 45° Flexion  |  15° Flexion  |  90° Extension  |  50° Extension  |  -10° Extension.
• Hinge Type: Bilateral dual-axis (universal left/right).

Straps & Closure System:

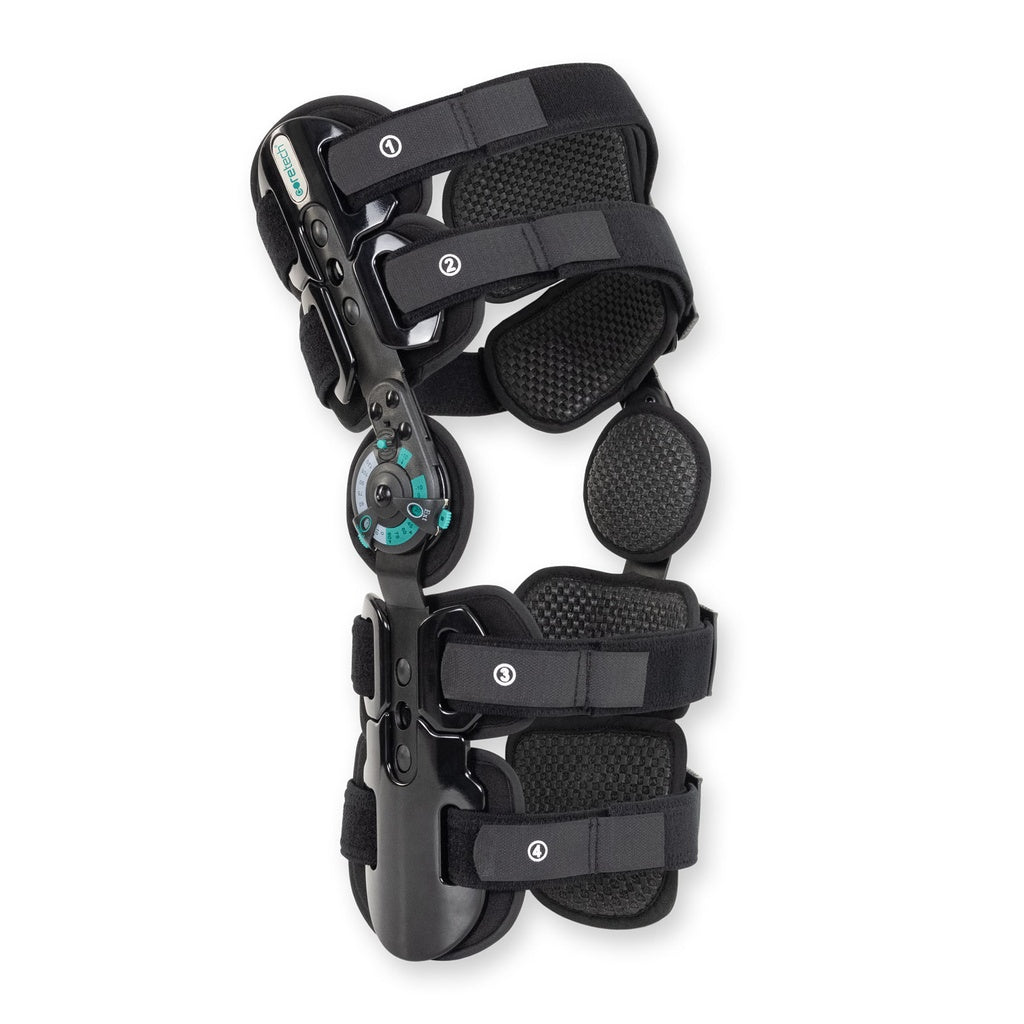

• Number of Straps: 4 numbered straps with quick-release buckles.
• Strap 1 (Upper Calf): Up to 35" circumference.
• Strap 2 (Lower Calf): Up to 35" circumference.
• Strap 3 (Lower Thigh): Up to 40" circumference.
• Strap 4 (Top Thigh): Up to 40" circumference.
• Customization: Trimmable — remove fastener, cut conservatively, reattach.
• Application Order: Upper calf → lower calf → lower thigh → top strap.

Dimensions:

• 18.8" x 6.2" x 3.81" (48 x 16 x 9.7 cm).

Weight:

• 2.239 lbs (1.01 kg).

Material(s):

• Lightweight aluminum  | 20% Polyester | 35% Aluminum | 20% ABS | 18% Nylon | 5% PA66 | 2% PC.

Care Instructions:

• Pads & Straps:
• • Remove from brace before cleaning.
  • Hand wash with cold water and mild detergent.
  • Air dry flat — do not use heat.
  • Ensure completely dry before reattaching.
• Hinge & Frame:
• • Wipe with alcohol-based disinfectant wipe.
  • Air dry completely.
  • Do not submerge in water.
  • Check hinge movement after cleaning.

Warranty Policy

• Hinge Mechanism: 1 year.
• Straps, Padding, Plastic Components: 6 months.
